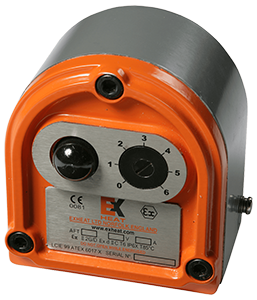

AFT Flameproof Air / Process Sensing Thermostats

EXHEAT Industrial’s AFT thermostats are supplied in weatherproof or explosionproof enclosures to complement our heaters. All thermostats are certified for use in hazardous areas where the atmosphere is classified as a Zone 1 or 2 (IIA, IIB, IIC) gas group. The AFT has an externally adjustable option, enabling quick and accurate variable control for air applications.

Features

  • Certified to ATEX, IECEx or CU TR (EAC) standards
  • Wall mounted
  • Suitable for ambient temperatures from -60°C to +60°C
  • Lightweight cast aluminium enclosure certified weatherproof to IP6X

Specifications

Certification ATEX / IECEx    II 2 G/D
Ex d IIC T6 Gb (Gas)
Ex t IIIC T85°C Db (Dust) IP6X
CU TR (EAC)
Enclosure Cast aluminium alloy with a maximum of two cable entries and external and internal earths
Controls
Choice of control range: 0 to 25°C, 0 to 40°C or 0 to 60°C options
Mounting Any threaded boss or flange in any material can be specified within the limits of the design parameters
Voltage 20A on 250VAC in a choice of switching configurations
